Functies:
- Module with regulator IC supports 3.2V/5V power supply
- With SD card holder, you can do experiments like digital photo frame
- De module reserveert de Nokia3310/5110-interface, ondersteunt de 1602-interface en plugt in en uit!
- IO for streamlined wiring
- LCD resolution: 128X160, driver IC: ILI9163/ST7735
Wiring:

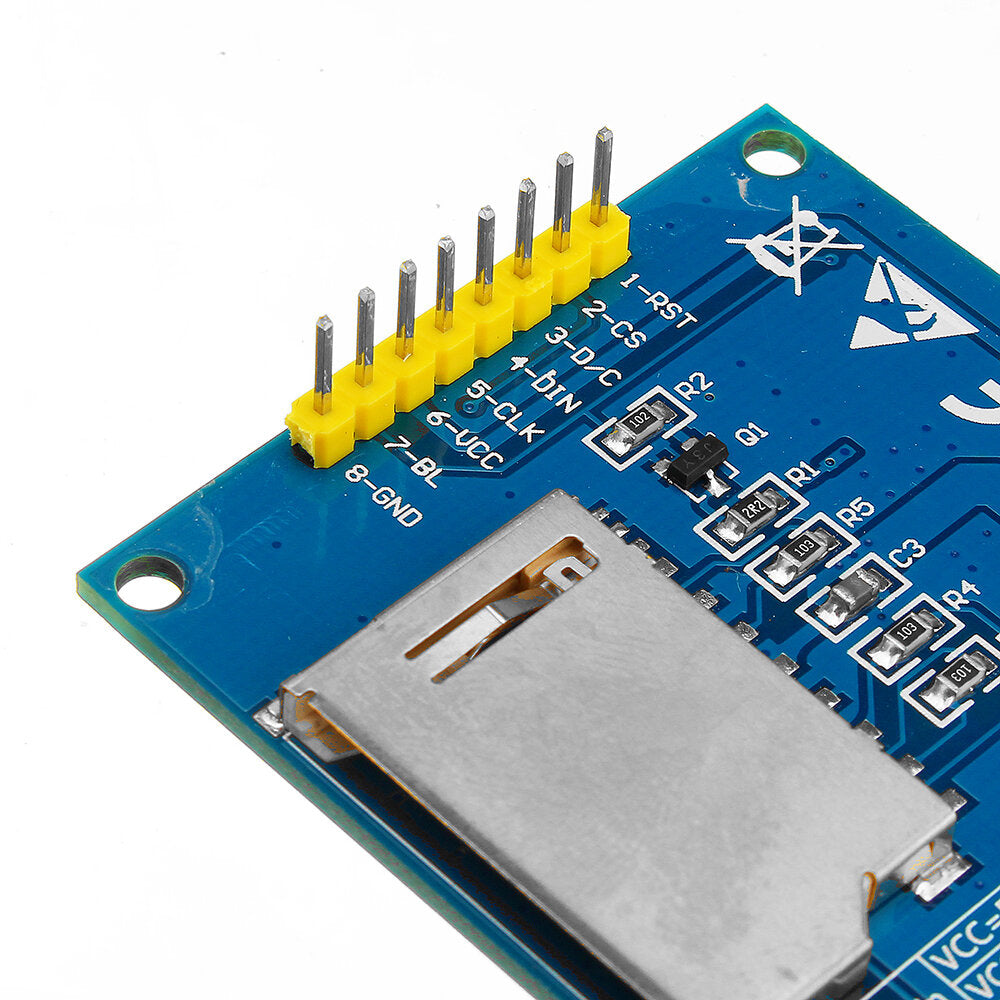

IO for streamlined wiring: (only 3 IOs after optimization)
1.RST-- directly connected to the microcontroller reset signal terminal, this IO can save
2.D/C--connected to low level, the chip selects long-term effective, this IO can save
3.D/C--connected to IO control register selection
4.DIN--connected to IO control data transmission
5.CLK--connected to IO control SPI bus
6.BL--Connected to the high level 3.3V backlight is always bright, then this IO can save
IO for standard wiring: (6 IO)
1.RST--connected to IO control LCD reset
2.CE--connected to IO control chip selection
3.D/C--connected to IO control register selection
4.DIN--connected to IO control data transmission
5.CLK--connected to IO control SPI bus
6.BL--connect IO control backlight on or off or PWM control brightness
Pakket Inbegrepen:
1 x 1.8 Inch LCD Module
