Omschrijving:
Werkspanning: 3 ~ 12V
Voor het solderen van SMD-componenten.
Pakket inbegrepen:

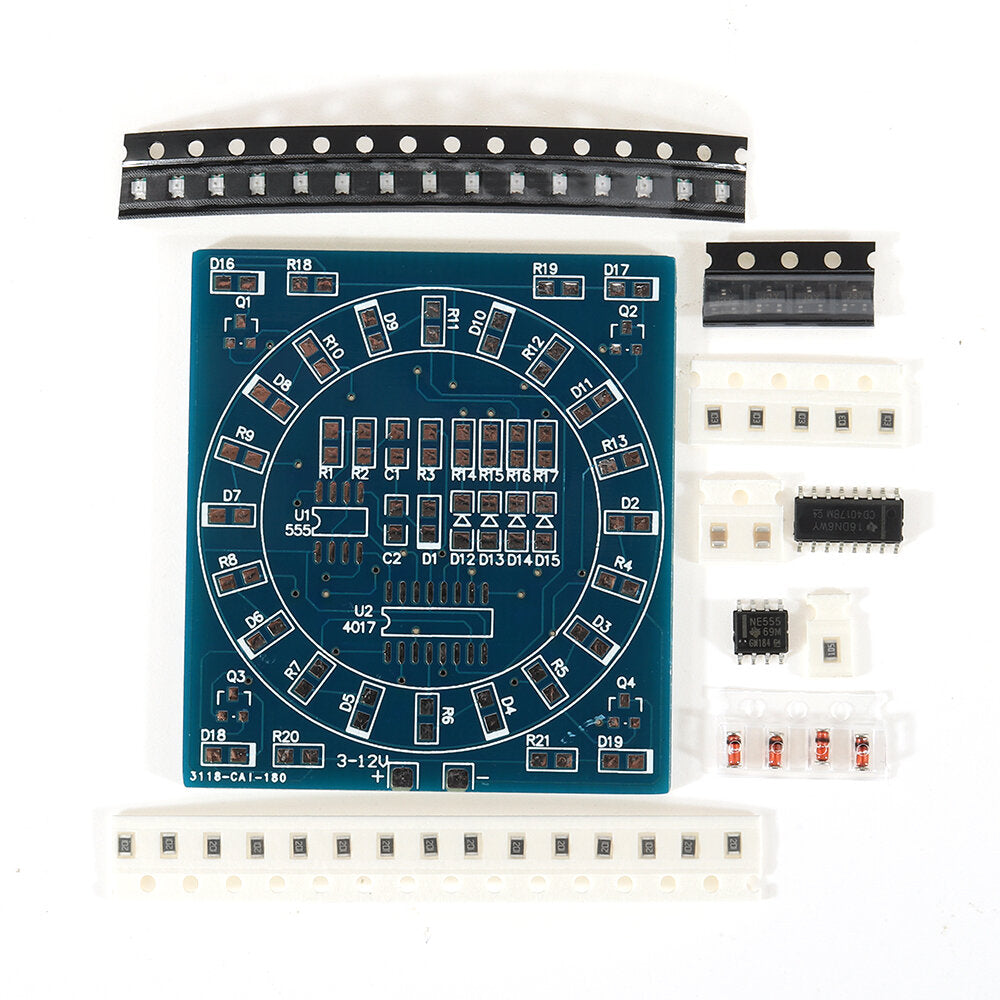

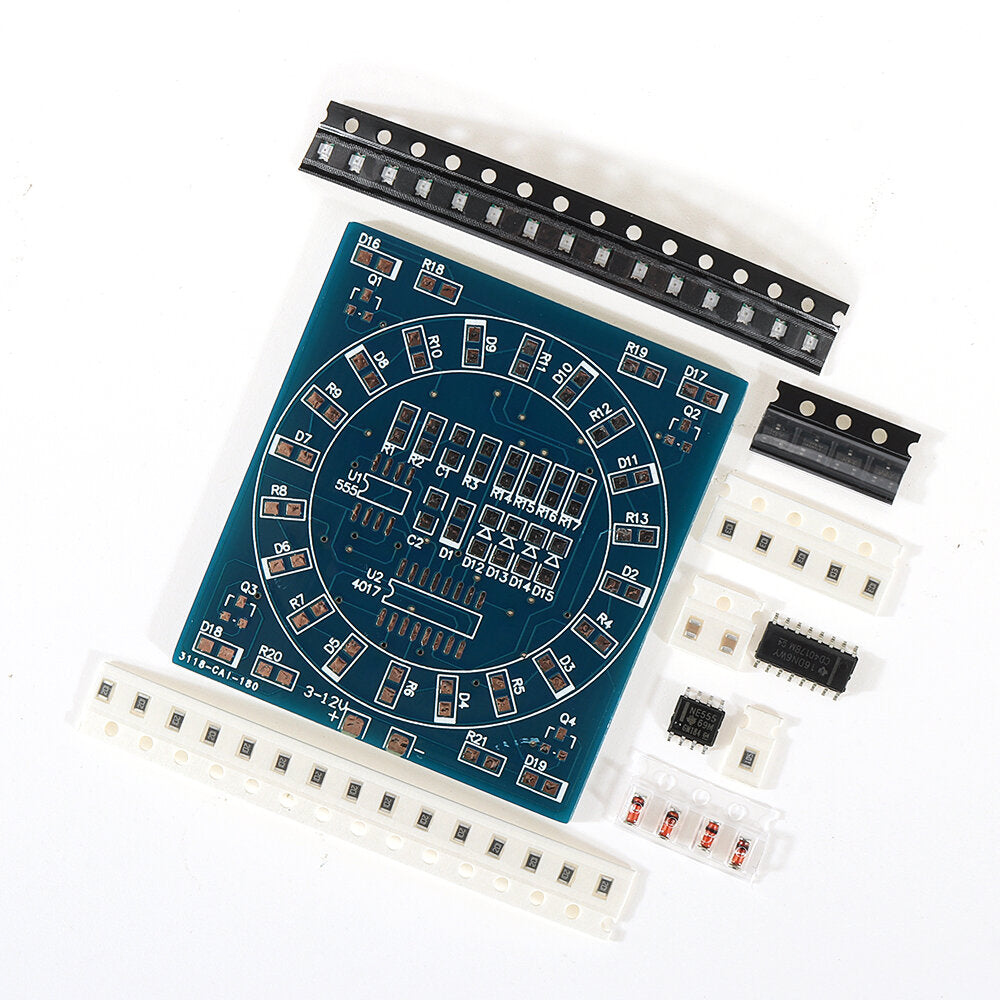

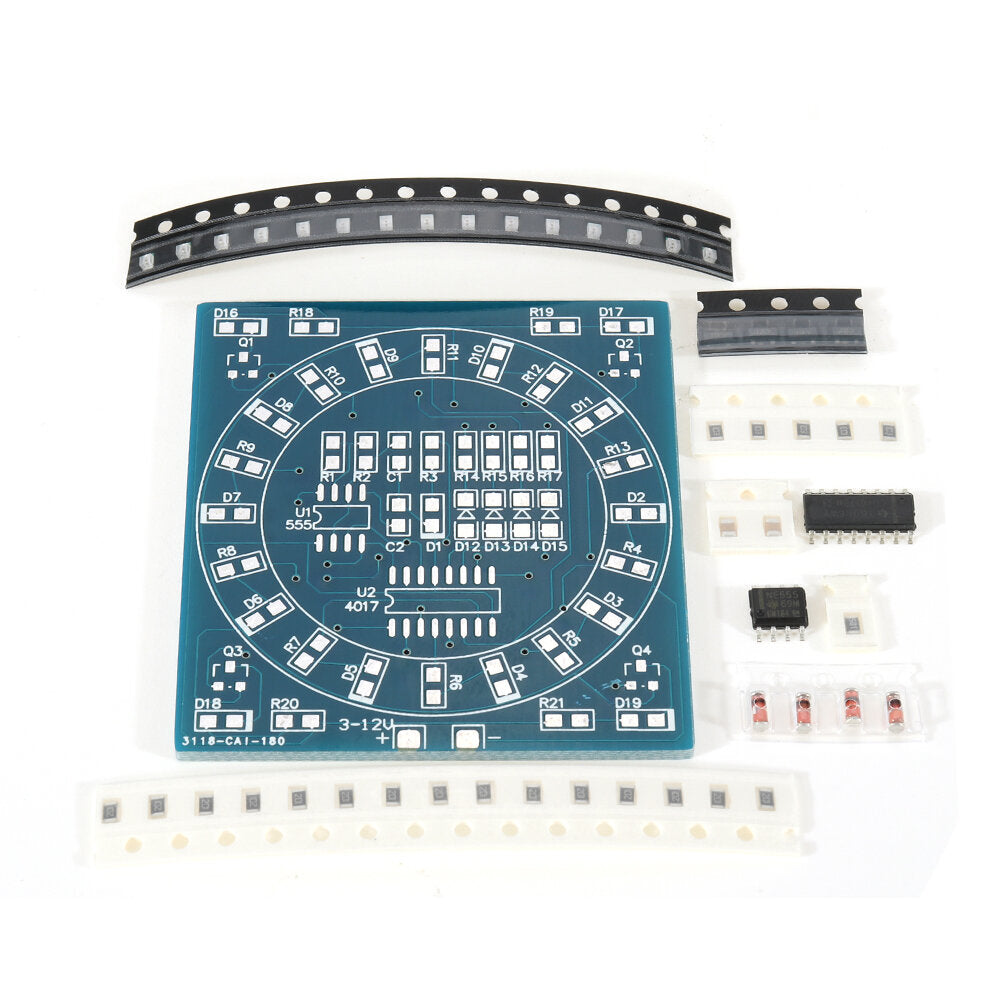

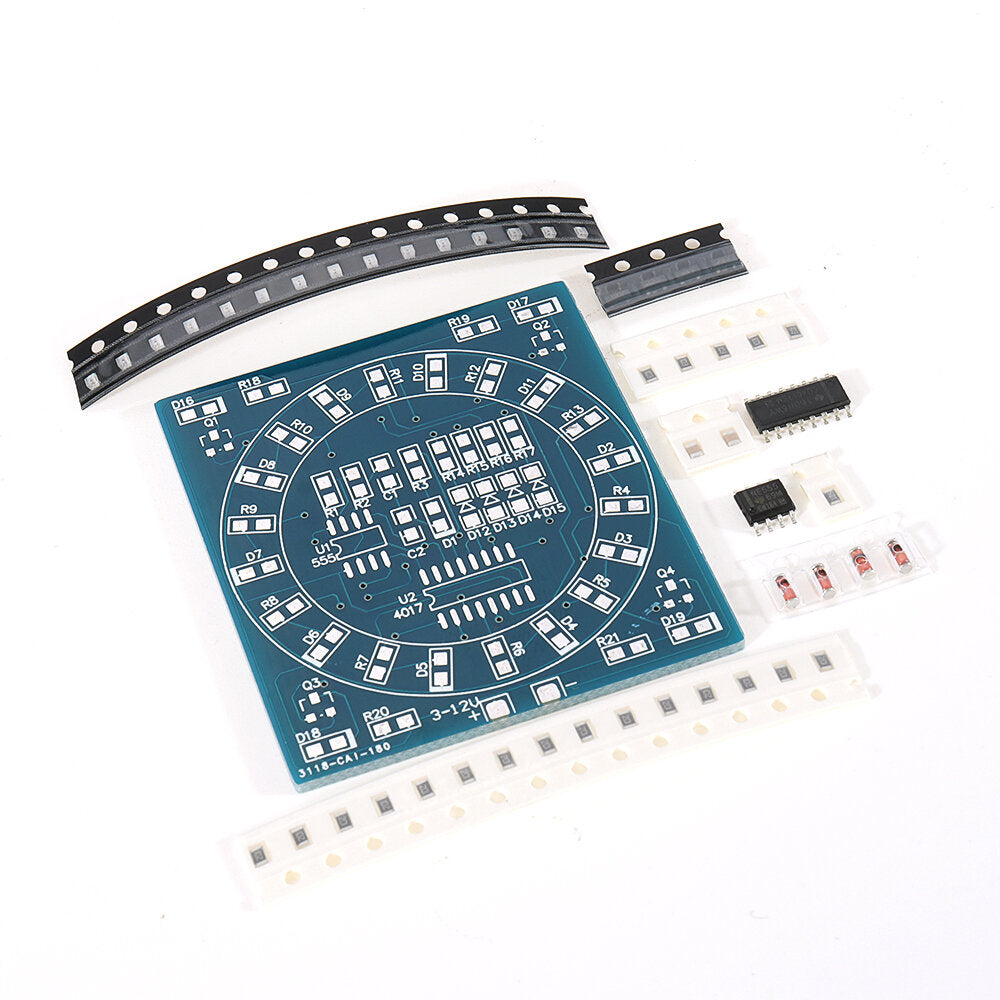

1 x DHZ SMD Component Soldeer oefenbord






Werkspanning: 3 ~ 12V
Voor het solderen van SMD-componenten.
Type | Aantal stuks | PCB-merkteken |
0805 SMD condensator 0.1uF | 2 | C1, C2 |
0805 SMD weerstand 10K ohm (103) | 5 | R1, R14-R17 |
0805 SMD-weerstand 1M ohm | 1 | R2 |
0805 SMD-weerstand 330ohm-1k ohm | 15 | R3-R13, R18-R21 |
0805 SMD rode LED | 15 | D1-D11, D16-D19 |
SMD 1N4148 | 4 | D12-D15 |
SMDS8050 (J3Y) | 4 | Q1-Q4 |
SMD NE555 | 1 | U1 |
SMD CD4017 | 1 | U2 |

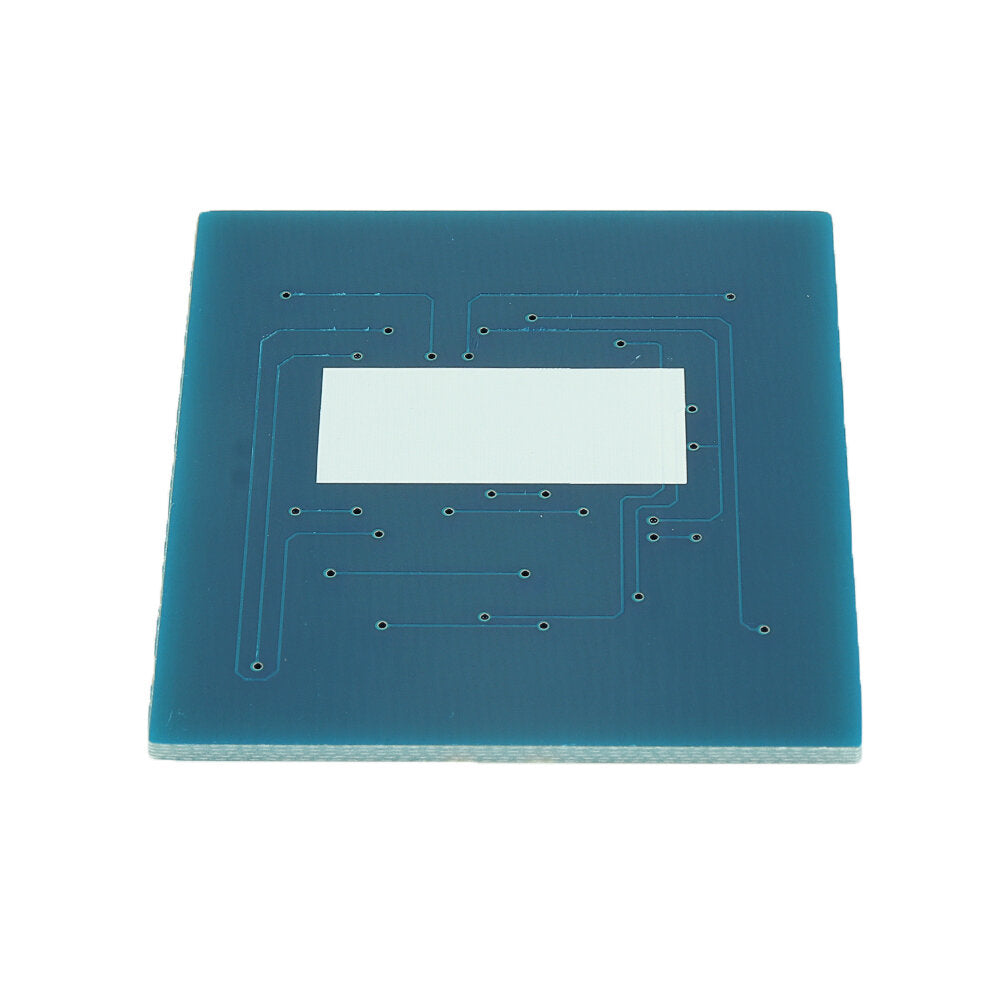

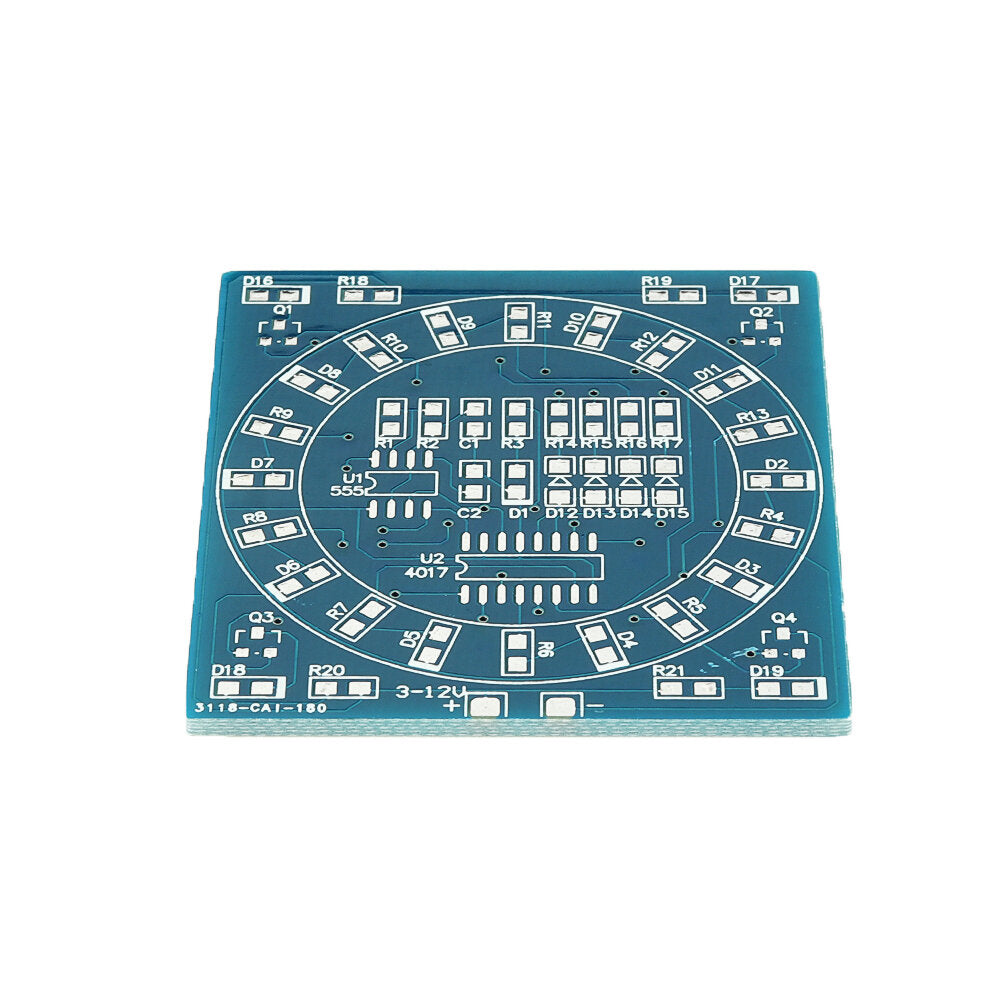

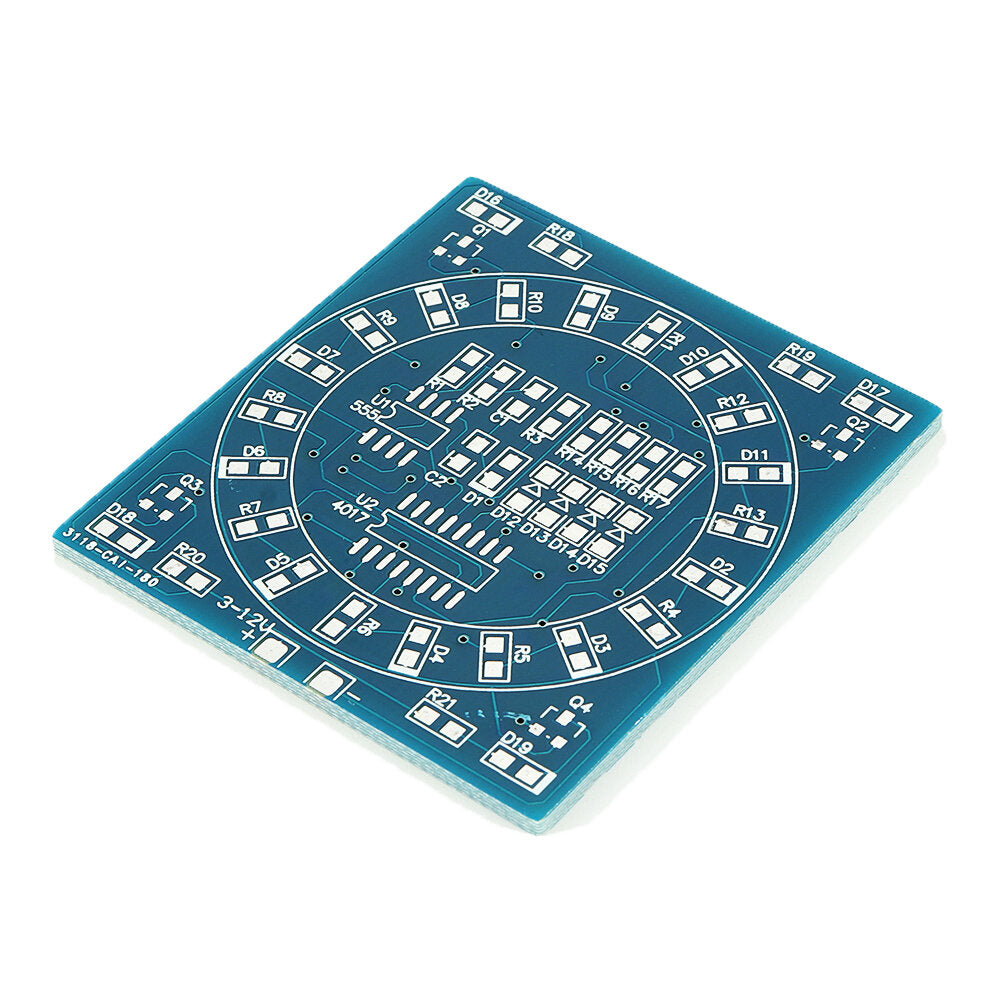

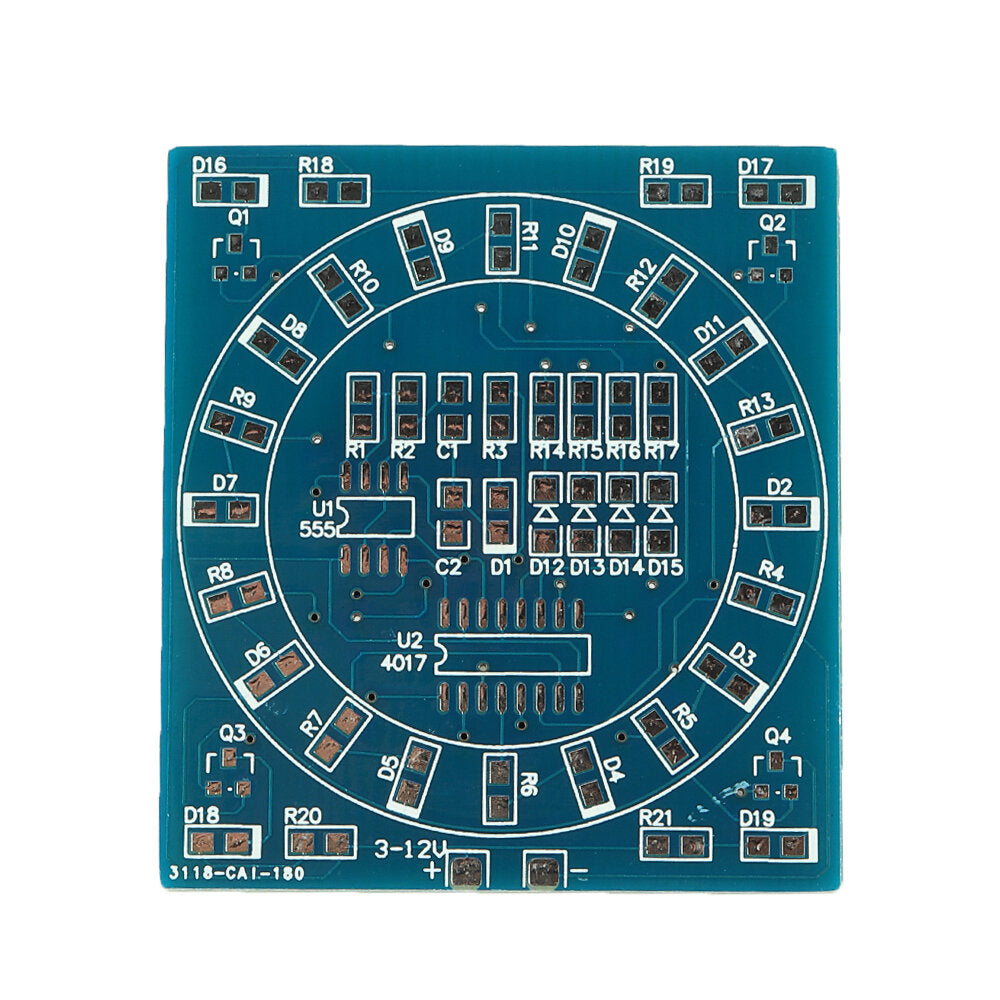

Printplaat 45 * 50 | 1 |
Pakket inbegrepen:
1 x DHZ SMD Component Soldeer oefenbord
