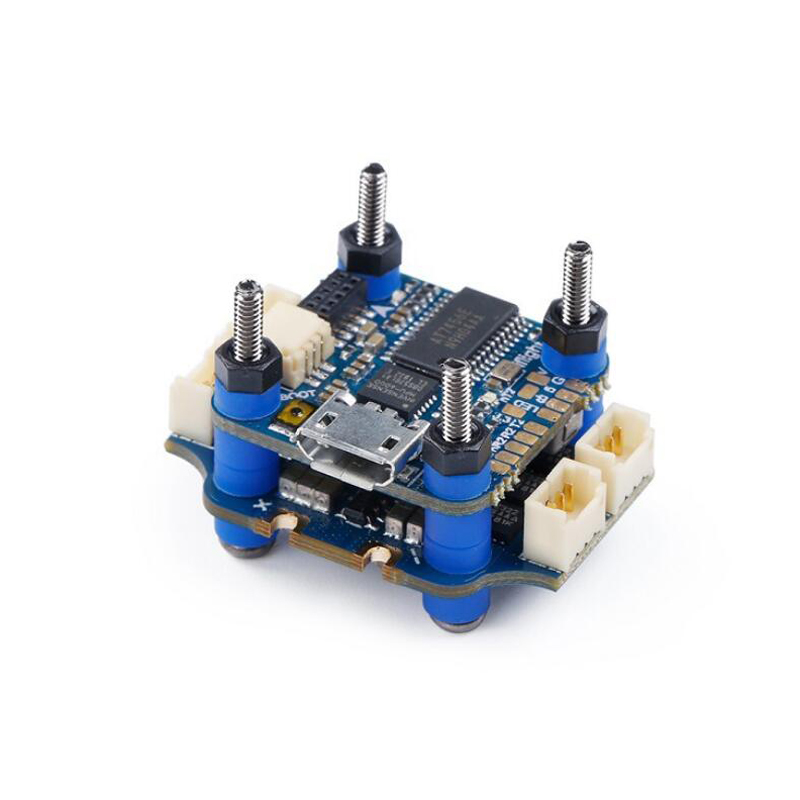

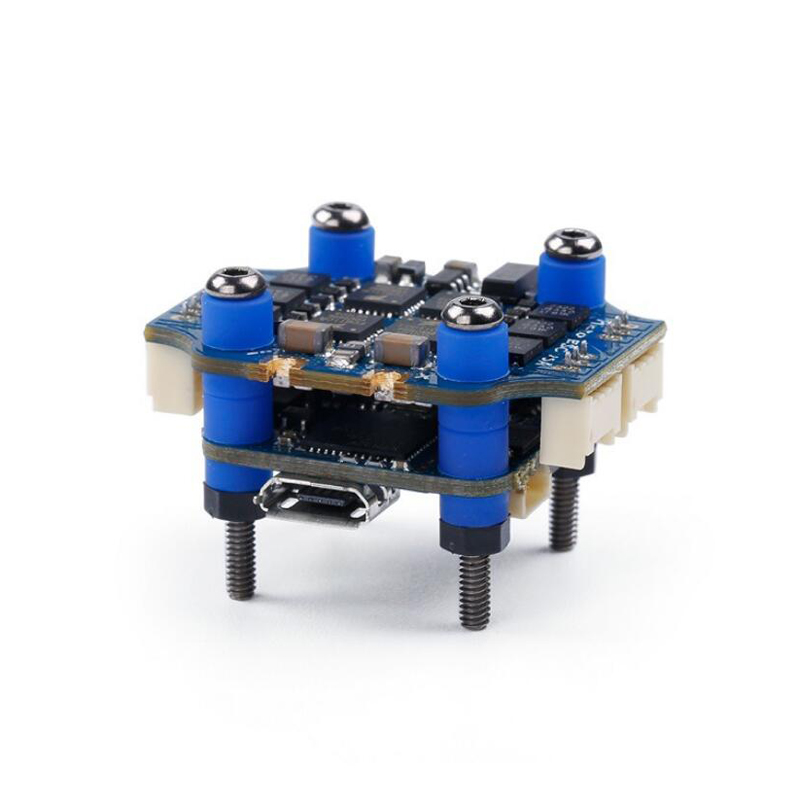

iflight succex f4 flight controller & 15a blheli_s 2-4s borstelloze esc voor rc drone fpv racing

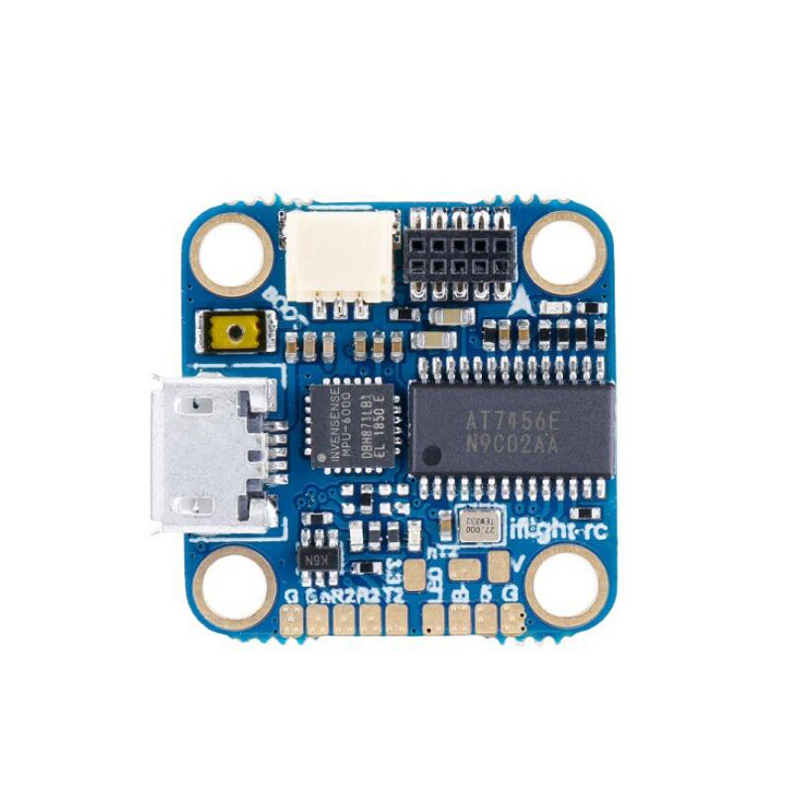

SucceX Micro F4 V2.1 Flight Controller
-STM32F411
- Ingangsspanning 2-4S LIPO
- Gyro: MPU6000
-2x UART-poorten
-4x motoruitgangen
-Betaflight OSD: AT7456E
-Blackbox FLASH: 8MB
-BEC 5V 2.5A cont.
-Size: 21 mm * 21 mm
-Montagegaten afstand: 16 * 16mm
-Gewicht: 2,5 g
-Firmware: betaflight_4.0.5_STM32F411.hex
-CLI dumpbestand: IFF411_PRO.config

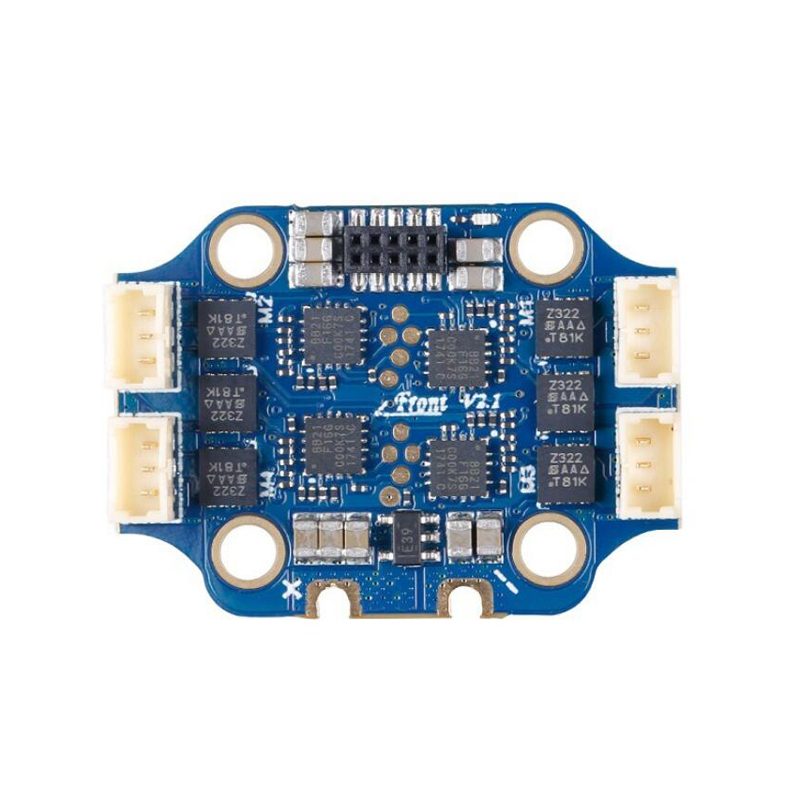

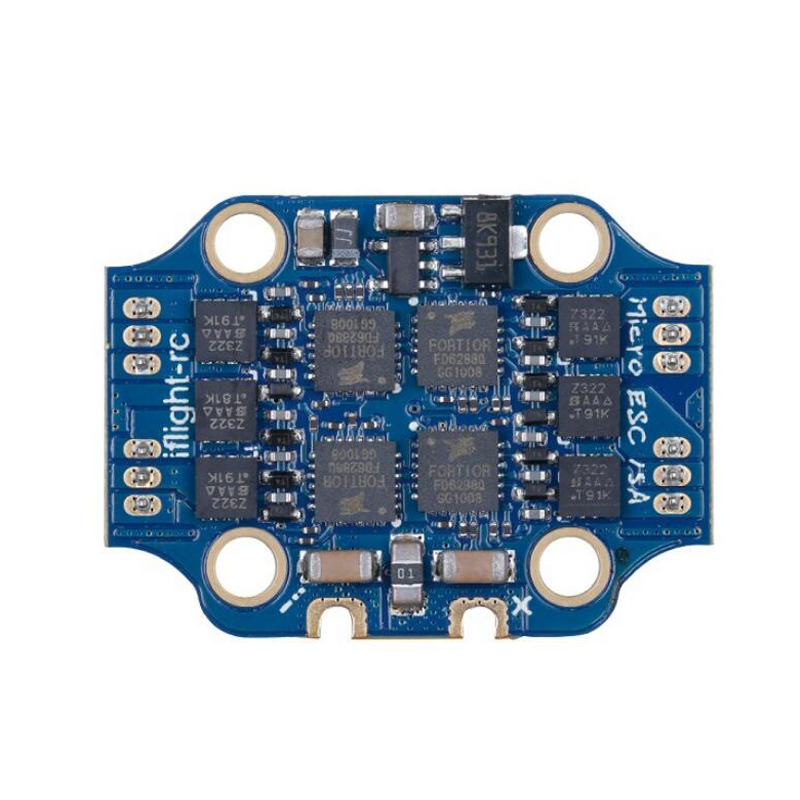

SucceX Micro 15A 4-in-1 ESC (met stekker)
-Firmware: GH-30 BLS 16.7
- Ingangsspanning: 2-4S LIPO
-Continue stroom: 15A
-MCU: BB21F16G
-BEC: NEE
-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23 mm * 21 mm
-Montageopening 16 * 16 mm
-Gewicht: 3,6 g

downloads

*(SucceX Micro, Whoop) IFLIGHT_F411_PRO.config

*SucceX Micro 16x16, SucceX Whoop FC Firmware (beta-vlucht 3.5.7)

*SucceX Micro 16x16, SucceX Whoop FC Firmware (beta-vlucht 4.0.4)

*SucceX Micro F4 V2 Handleiding

Pakket inbegrepen:
1 x SucceX Micro F4 Flight controller (M3 hole)
1 x SucceX Micro 15A borstelloze ESC (met pluggen, M3-gat)
