More Information: https://github.com/Xinyuan-LilyGO/LilyGO-T-ETH-POE

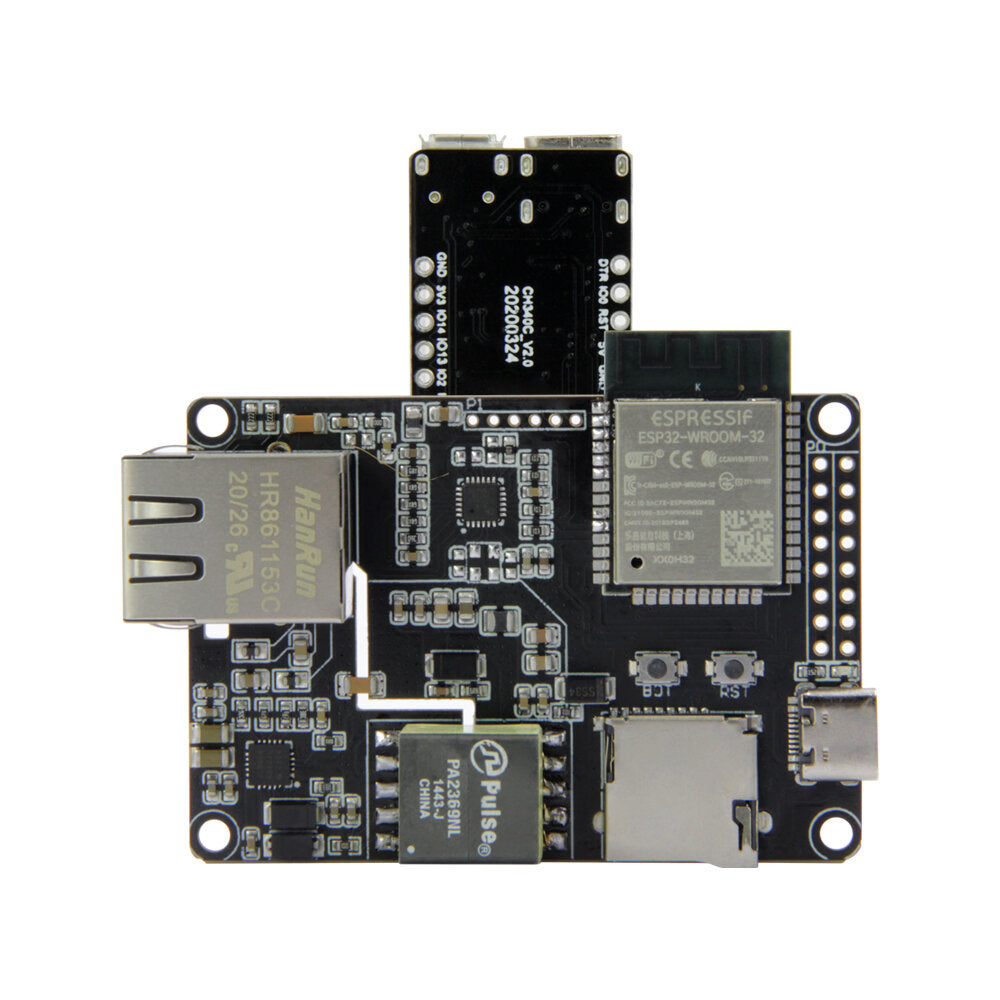

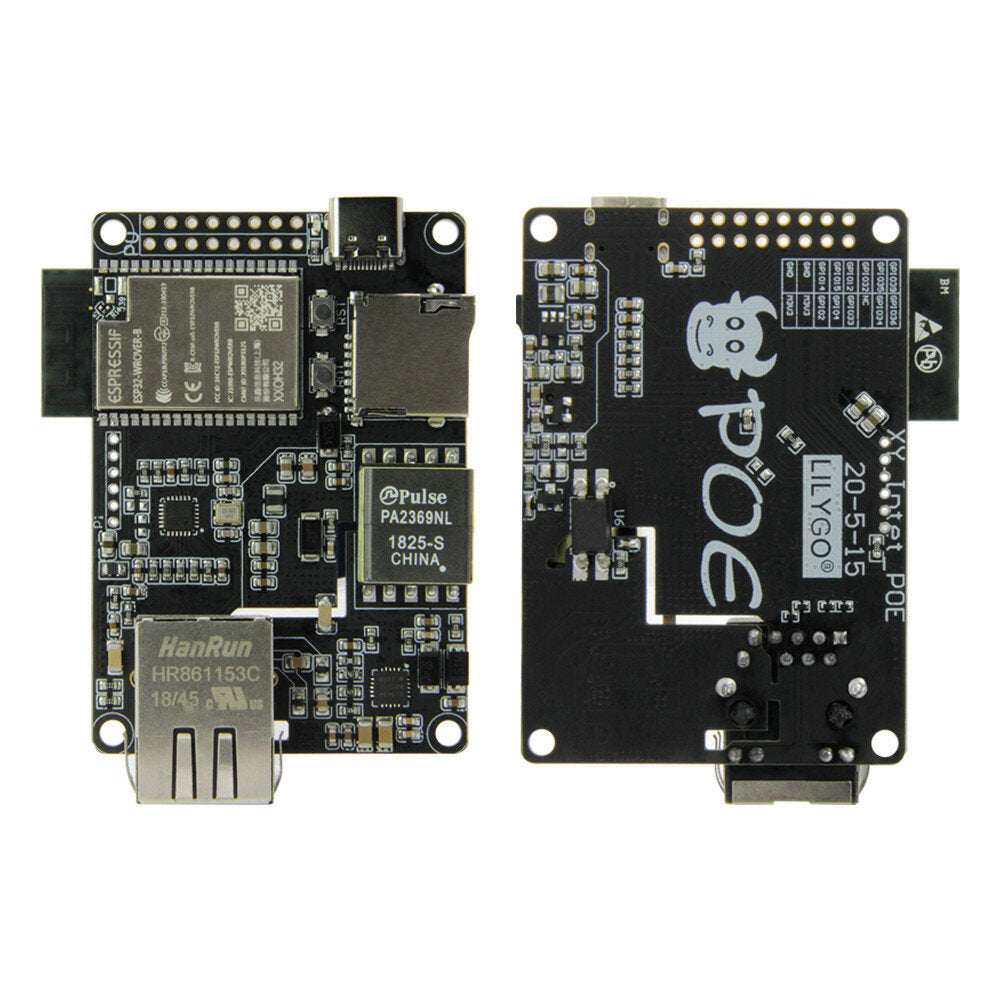

Product Detail :
1. Compatible with PoE mode A (powered by data pair) and PoE mode B (powered by backup pair) and auto MDIX, allowing the use of straight and crossover Ethernet cables.
2. 20 needle footprint with 3.3V, V+ power and 15 ESP32GPIO are available for your application.
3. The compact 75mm by 40mm footprint is compatible with 4 mounting holes of ordinary M2.5 or 4-40 screws.
4. A small programming/USB serial console sub-module has been created so that the Inter-POE module can be easily programmed to meet the user's application needs.
Functie:
| Hardware Specifications | |
| Chipset | ESPRESSIF-ESP32-WROOM,LAN8720A Ethernet chip,SI3404 Power management chip |
| FLASH | 4MB |
| SRAM | 520 kB SRAM |
| Knop | BOT,Rest |
| External Device | TF Card Slot,Type-C Interface,PA2369NL 1825-S Transformer,HR861153C Ethernet-POE interface |
| USB to TTL | CP2104 |
| Modular interface | SD card,UART,SPI,I2C,PWM,I2S,ADC |
| On-board clock | 32.768MHz crystal oscillator |
| Working temperature range | -40 ℃ ~ + 85 ℃ |
| Gewicht | 26.85g |
| Maat | 70*52.3*17mm |
| Power Supply Specifications | |
| Voedingsingang | Type-C USB 5V |
| HR861153C Ethernet-POE interface 50V | |
| Werkspanning | 2.7V-3.6V |
| Maximum output current | About 1.2A |
| Laadstroom | 500mA |
| USB | Type-C USB |
| Wi-Fi | |
| Standaard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip) |
| Protocol | 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval |
| Frequentiebereik | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Zendvermogen | 22dBm |
| Communication distance | 300m |
| Bluetooth | |
| Protocol | Maak kennis met bluetooth v4.2BR/EDR en BLE-standaard |
| Radio frequency | Met -97dBm gevoeligheid NZIF ontvanger Class-1,Class-2&Class-3 zender AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Softwarespecificatie | |
| Wi-Fi-modus | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA(Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4,IPv6,SSL,TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iBesturingssysteemapp |
| Besturingssysteem | FreeRTBesturingssysteem |
Pakket bestaat uit:

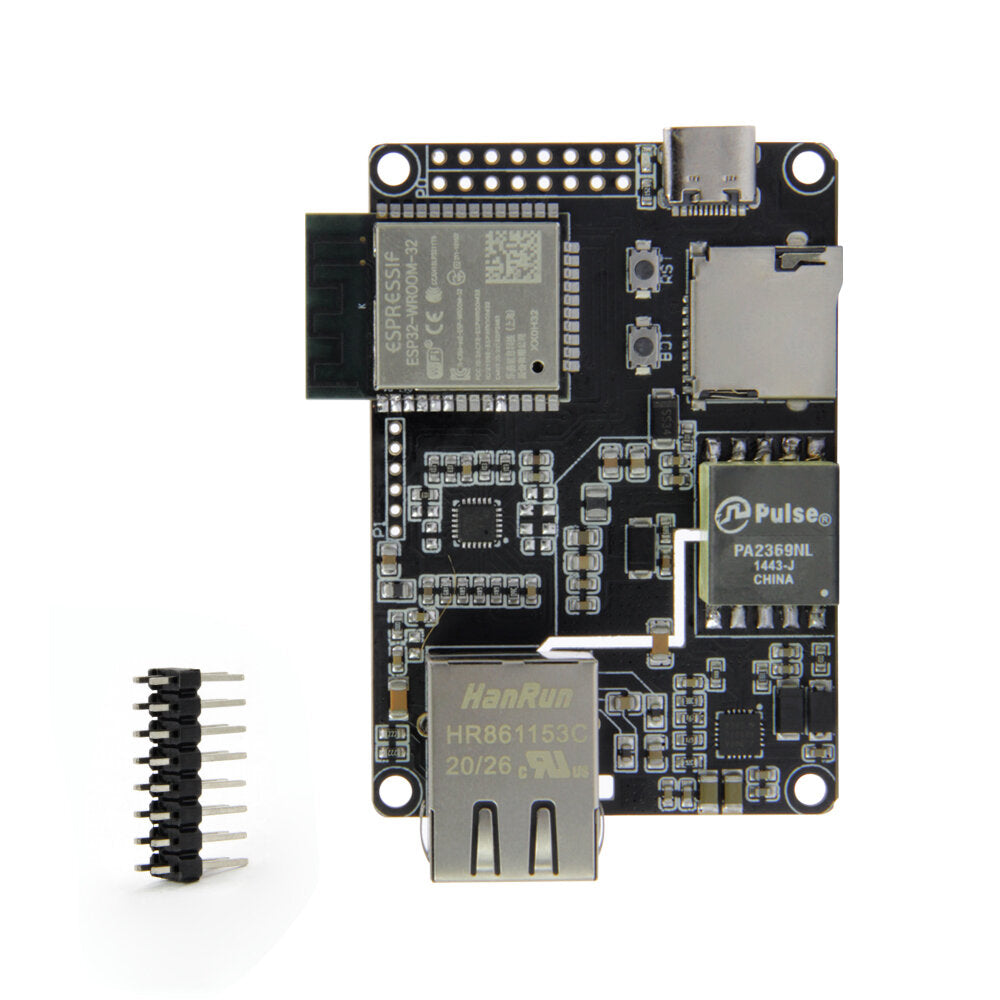

1 x T-Internet-POE
1 x Double Row Pin

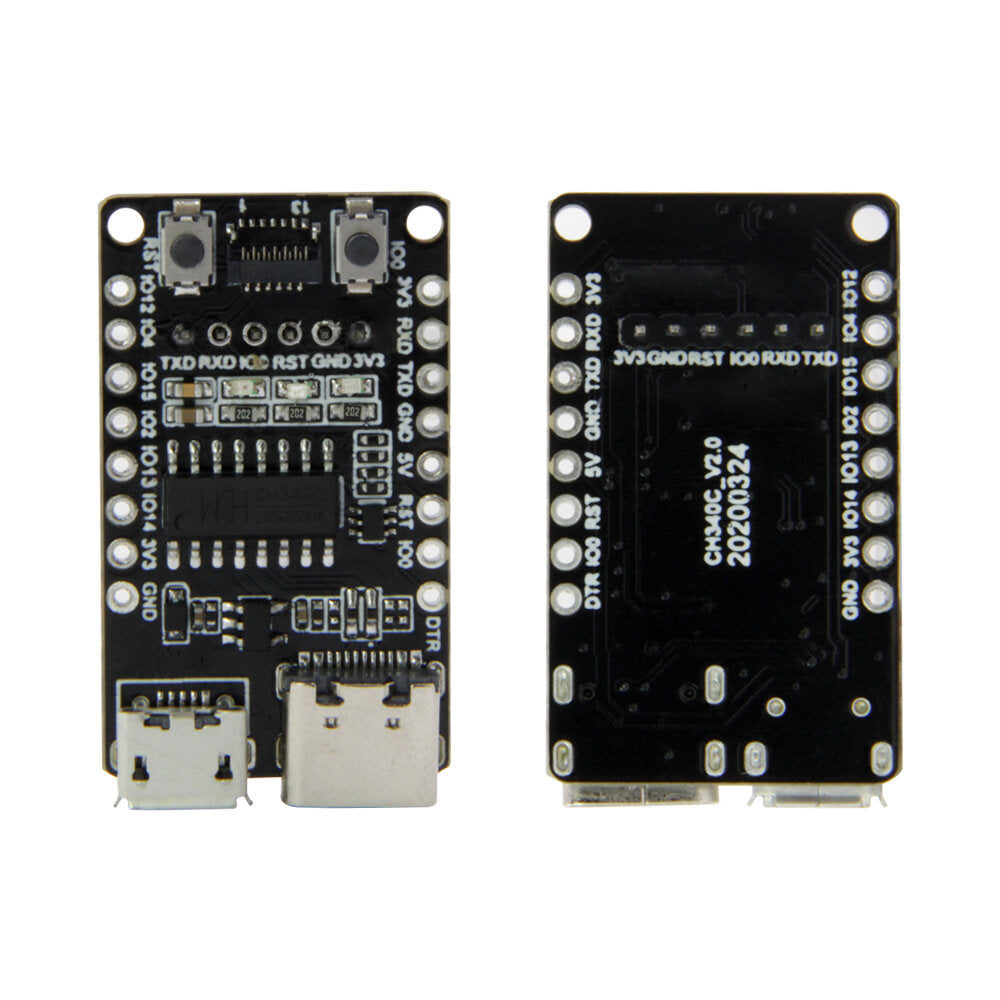

1 x Downloader Expansion Board (optional)
Note: The USB interface only has a charging function, the product needs downloader to program.
