Beschrijving:
M5Core2 is het kernapparaat van de tweede generatie in de M5Stack-ontwikkelingskitserie, dat de functies van de oorspronkelijke generatie kernen verder verbetert.
De MCU is een ESP32 model D0WDQ6-V3 en heeft dual core Xtensa® 32-bit 240Mhz LX6-processors die afzonderlijk kunnen worden aangestuurd. WiFi en Bluetooth worden standaard ondersteund en het omvat een ingebouwde 16 MB Flash en 8 MB PSRAM, USB TYPE-C-interface voor opladen, downloaden van programma's en seriële communicatie, een 2,0-inch geïntegreerd capacitief touchscreen en een ingebouwde vibratiemotor .
M5Core2 beschikt ook over een ingebouwde RTC-module die een nauwkeurige timing kan bieden. De stroomvoorziening wordt beheerd door een AXP192-energiebeheerchip, die het stroomverbruik van de basis effectief kan regelen en een ingebouwde groene LED-stroomindicator helpt de gebruiker op de hoogte te stellen van het batterijniveau. De batterijcapaciteit is opgewaardeerd naar 390 mAh, wat de kern veel langer kan voeden dan het vorige model.
De M5Core2 behoudt de SD-kaartsleuf en luidsprekers. Om echter een hogere geluidskwaliteit te garanderen, wordt de I2S digitale audio-interface eindversterkerchip gebruikt om signaalvervorming effectief te voorkomen. Er zijn onafhankelijke stroom- en resetknoppen aan de linkerkant en onderkant van de basis.

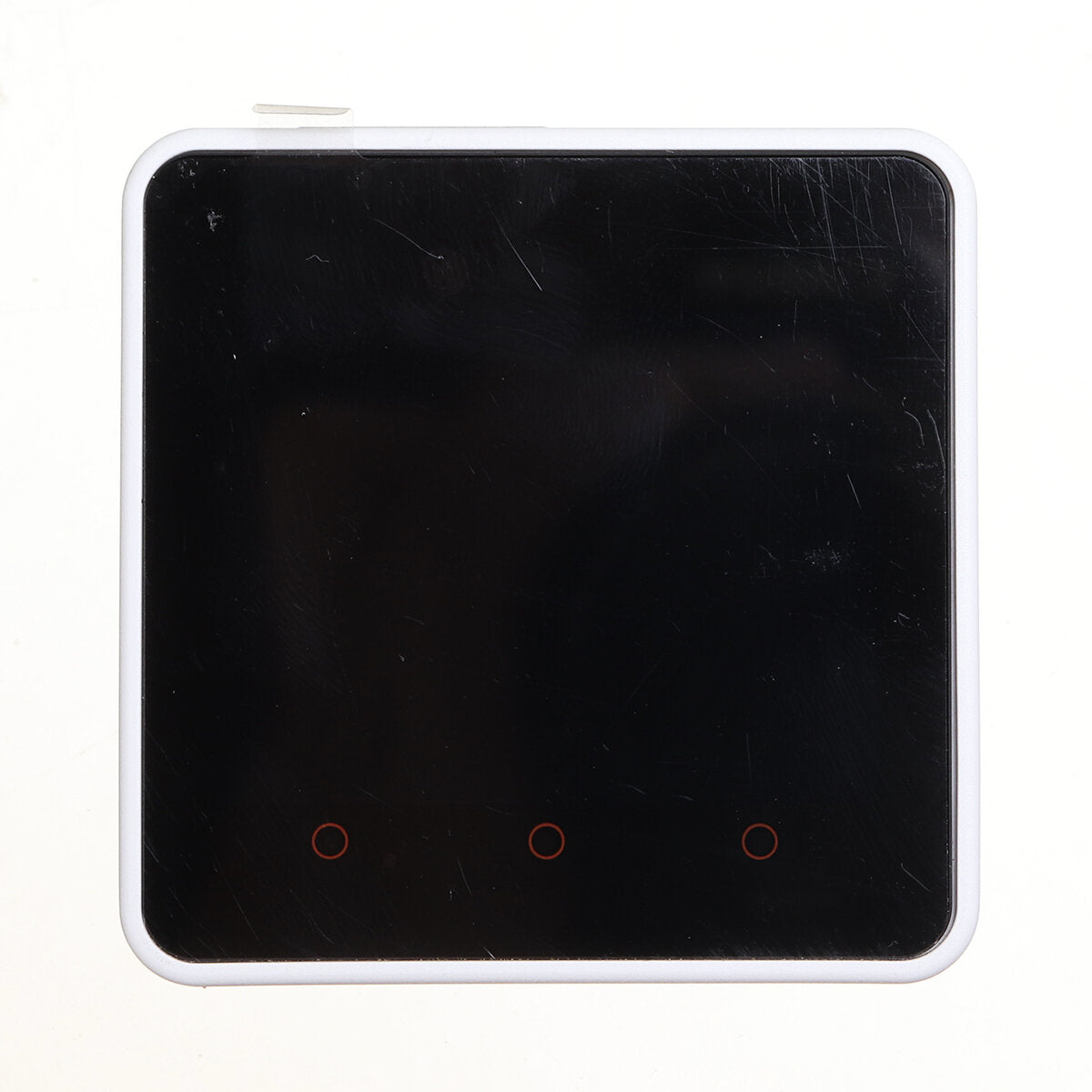

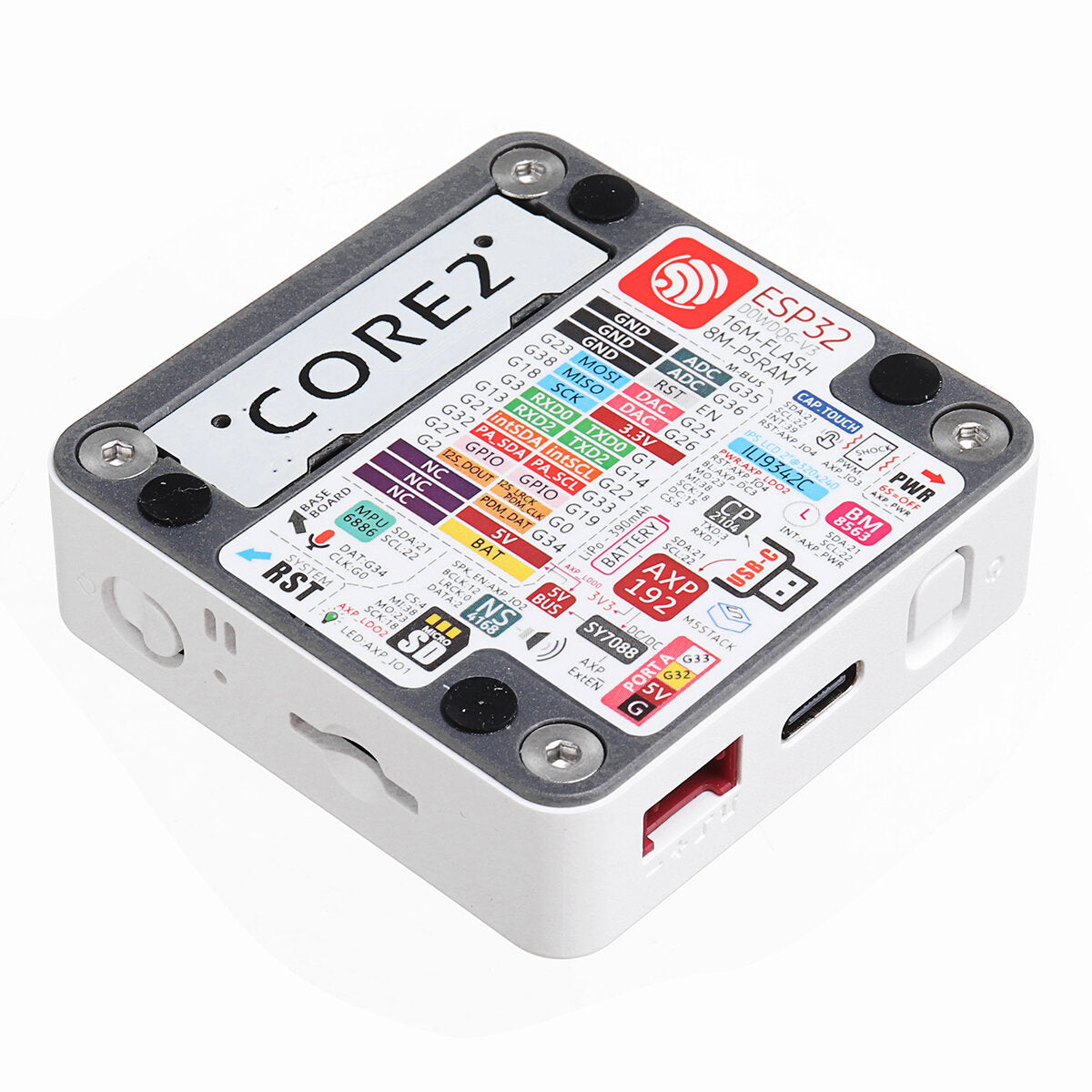

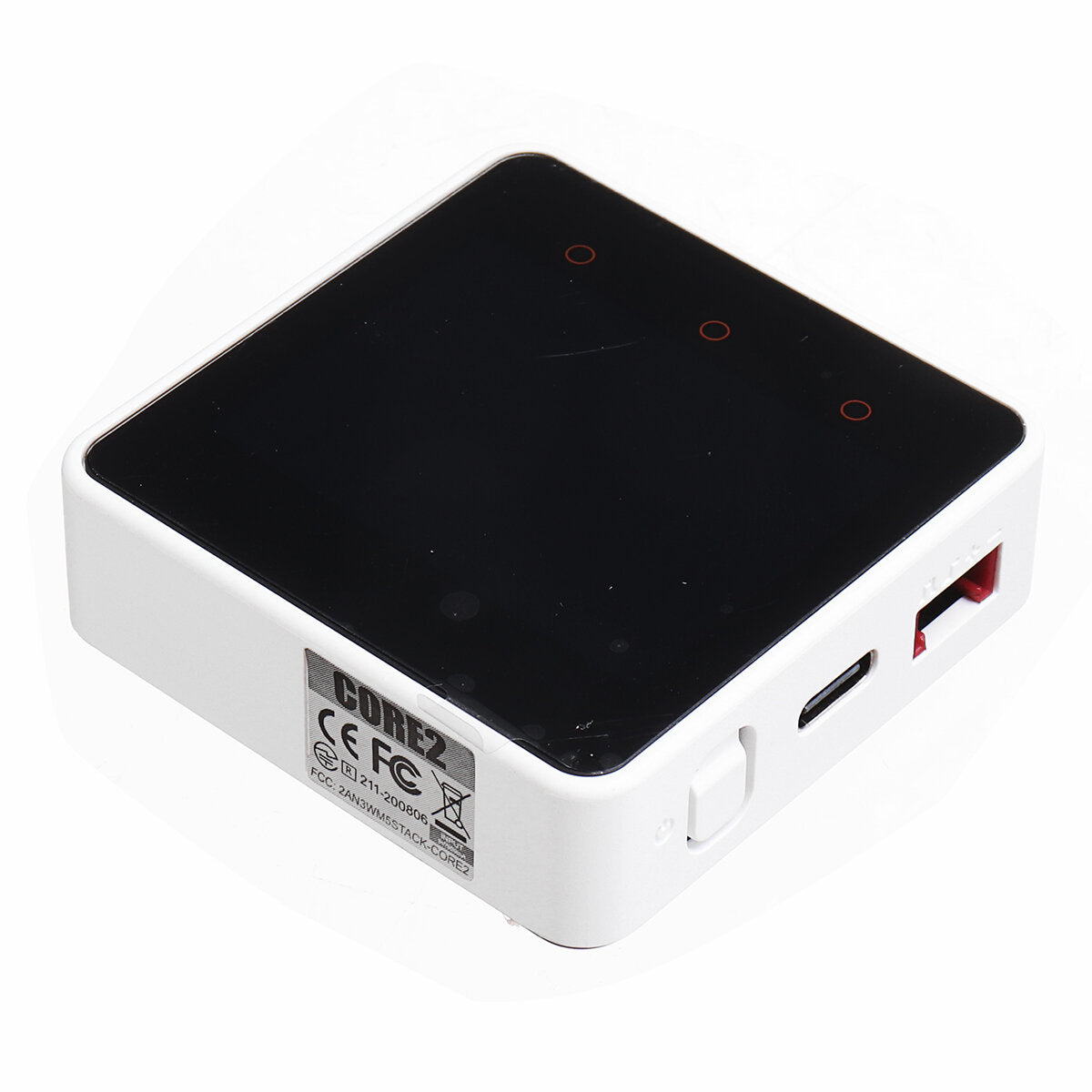

The 3 icons on the front of the screen are capacitive buttons which are programmable. There is a small expansion board on the back of the base with a 6-assige IMU sensor and microphone. The development platform and programming language supported by M5Stack Core2: Arduino, UIFlow (met behulp van Blockly, microfoonroPython-taal) Ongeacht het niveau van uw ontwikkelings- en programmeervaardigheden, M5Stack zal U helpen uw ideeën geleidelijk in realiteit om te zetten.
Inschakelen / uitschakelen:
Inschakelen: klik op de aan / uit-knop
Uitschakelen: houd de aan / uit-knop 6 seconden ingedrukt
Opnieuw opstarten: klik onderaan op de RST-knop
Functies:
Op ESP32 gebaseerde, ingebouwde Bluetooth, WiFi
16M Flash, 8M PSRAM
Ingebouwde luidspreker, stroomindicator, vibratiemotor, RTC, I2S-versterker, capacitief touchscreen, aan / uit-knop, resetknop
TF-kaartsleuf (16G maximale grootte)
Ingebouwde lithiumbatterij, uitgerust met energiebeheerchip
Onafhankelijke kleine ingebouwde 6-assige IMU, PDM-microfoon
M-Bus-aansluiting & pennen
Pakket Inbegrepen:

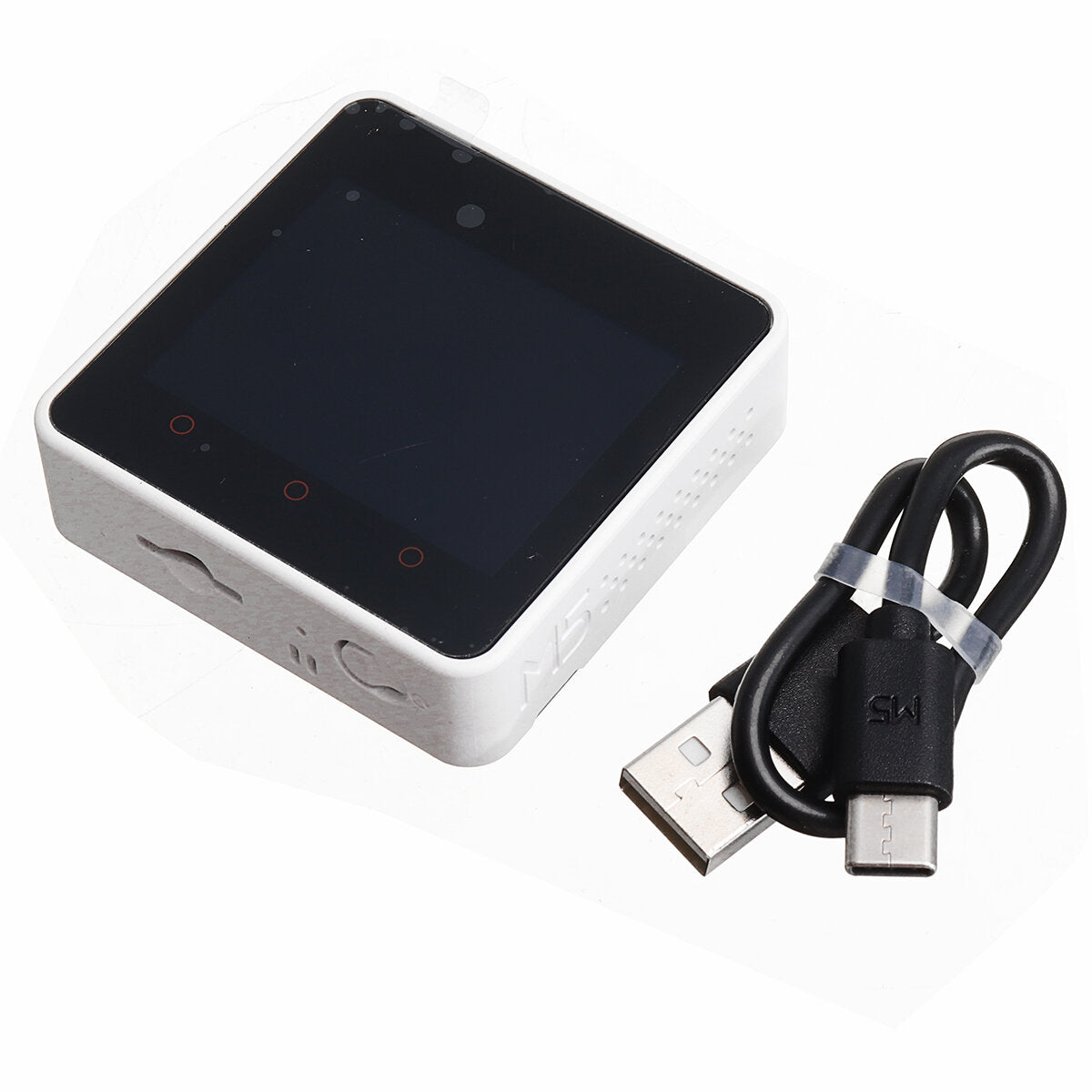

1x M5Stack Core2
1x Type-C USB (20 cm)
Toepassingen
Terminal controller voor internet of things
Stam educatief product
DIY-creatie
Slimme huisapparatuur

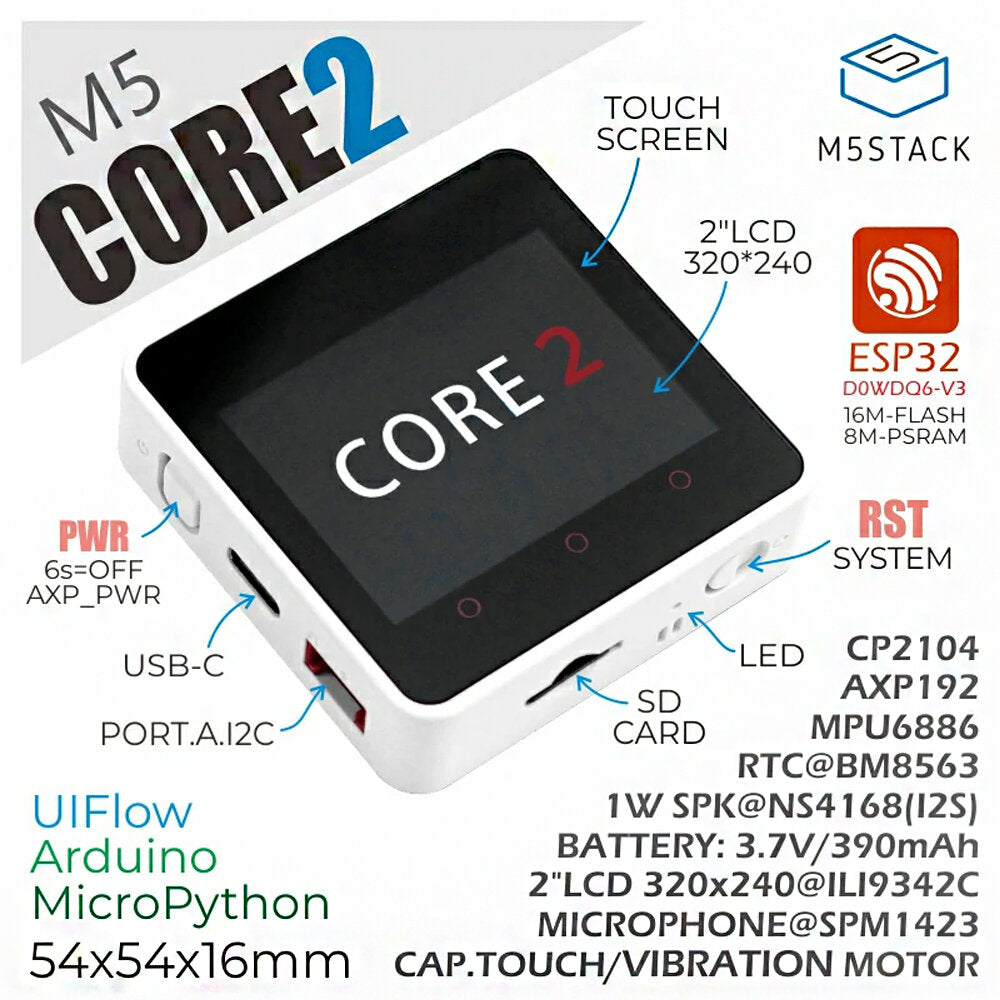

Specificatie:
Bronnen | Parameter |
ESP32-D0WD-V3 | 240 MHz dual core, 600 DMIPS, 520 KB SRAM, wifi, dual mode Bluetooth |
Flash | 16MB |
PSRAM | 8MB |
Ingangsspanning | 5V @ 500mA |
Koppel | TypeC x 1, GROVE (I2C+I/0+UART) x 1 |
IPS LCD-scherm | 2,0 "@ 320 * 240 ILI9342C |
Touch screen | FT6336U |
Spreker | 1W-0928 |
LED | Groen stroomindicatielampje |
Knop | Aan / uit-knop, RST-knop, Virtuele schermknop * 3 |
Trillingsherinnering | Trillingsmotor |
MIC | SPM1423 |
I2S eindversterker | NS4168 |
6-assige IMU | MPU6886 |
RTC | BM8563 |
PMU | AXP192 |
USB-chip | CP2104 |
gelijkstroom-gelijkstroom-boost | SY7088 |
TF-kaartsleuf | 16G Max. |
Lithium batterij | 390 mAh bij 3,7 V. |
Antenne | 2.4G 3D-antenne |
Bedrijfstemperatuur: | 32 °F tot 104 °F (0 °C tot 40 °C) |
Netto gewicht | 52g |
Bruto gewicht | 70g |
Product grootte | 54 x 54 x 16mm |
Pakketgrootte | 75 x 60 x 20mm |
Materiaal behuizing | Kunststof (PC) |
EasyLoader:
EasyLoader is a concise and fast program writer, which has a built-if program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Klik hier om de zelfstudie van de CP210X-driver te bekijken, M5StickC / V / T / ATOM-serie kan worden gebruikt zonder driver)

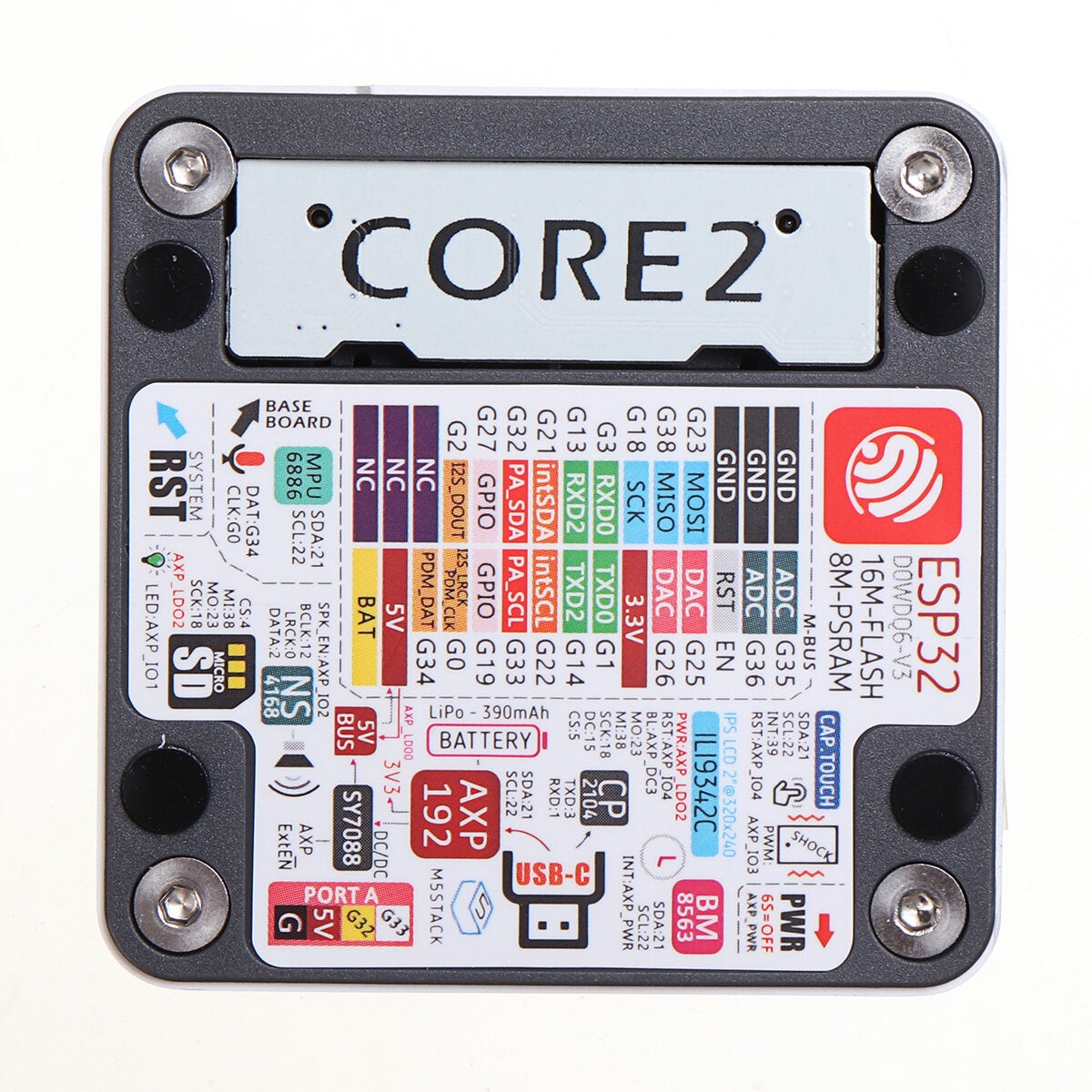

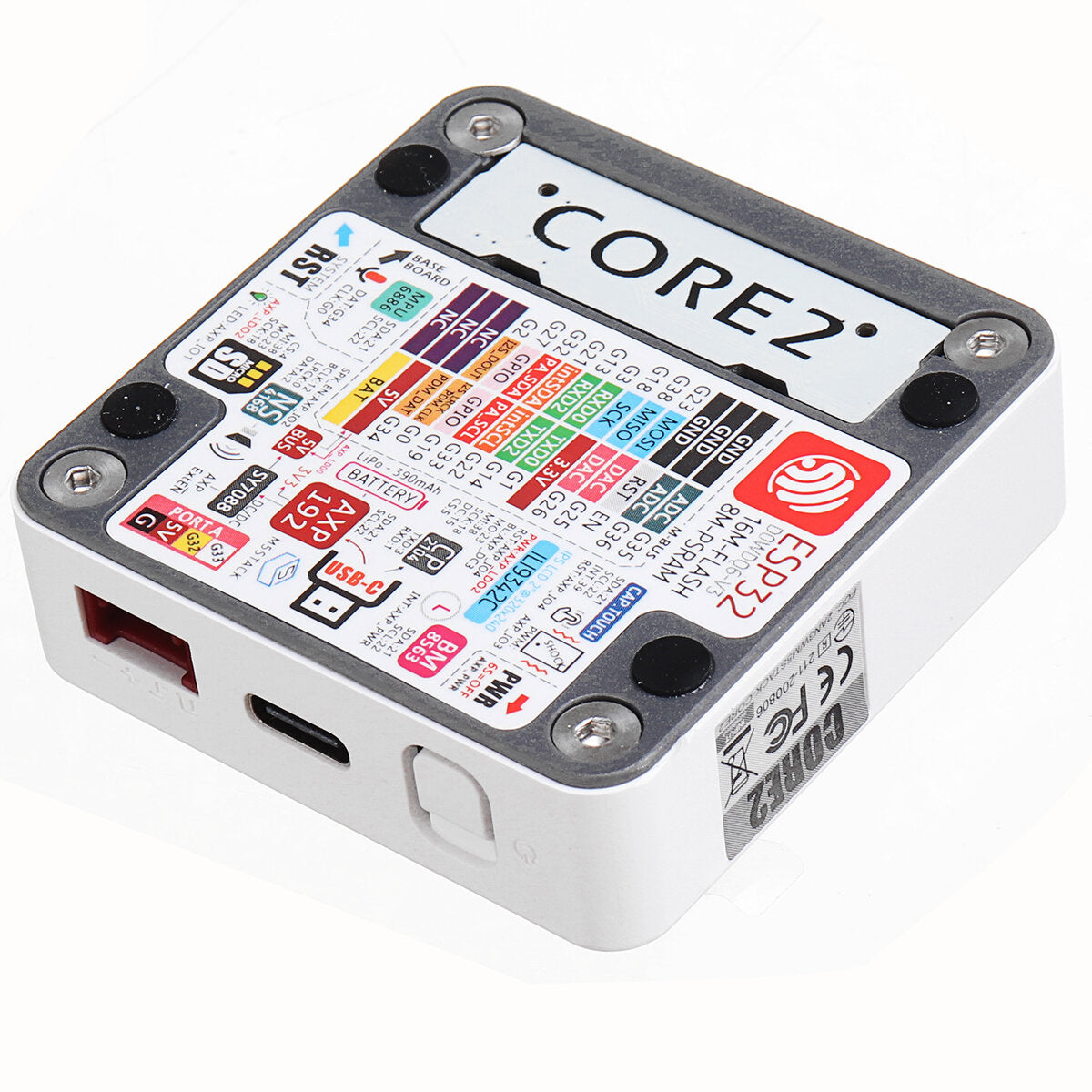

PinMap:
LCD & TF-kaart
LCD: 320x240 TF-kaart Maximale grootte 16GB
ESP32-chip | GPIO38 | GPIO23 | GPIO18 | GPIO5 | GPIO15 | |||
AXP192-chip | AXP_IO4 | AXP_gelijkstroom3 | AXP_LDO2 | |||||
ILI9342C | MISO | MOS1 | SCK | CS | gelijkstroom | RST | BL | PWR |
ESP32-chip | GPIO38 | GPIO23 | GPIO18 | GPIO4 |
TF-kaart | MISO | MOS1 | SCK | CS |
CAP.TOUCH:
ESP32-chip | GPIO21 | GPIO22 | GPIO39 | |
AXP192 | AXP_IO4 | |||
FT6336U | SDA | SCL | INT | RST |
microfoonrofoon en NS4168:
ESP32-chip | GPIO12 | GPIO0 | GPIO2 | AXP_IO2 | GPIO34 |
NS4168 | BCLK | LRCK | GEGEVENS | SPK_EN | |
microfoon | CLK | GEGEVENS |
AXP Power-indicatielampje:
AXP192 | AXP_IO1 | AXP_LDO3 |
Groene LED | Vcc | |
Trillingsmotor | Vcc |
RTC:
ESP32-chip | GPIO21 | GPIO22 | |
AXP192 | AXP_PWR | ||
BM8563 | SDA | SCL | INT |
IMU (3-assige gyroscoop en 3-assige versnellingsmeter):
ESP32-chip | GPIO21 | GPIO22 |
MPU6886 | SDA | SCL |
USB naar seriële chip:
ESP32-chip | GPIO1 | GPIO3 |
CP2104 | RXD | TXD |
Interne I2C-verbinding:
ESP32-chip | GPIO21 | GPIO22 |
MPU6886 | SDA | SCL |
AXP192 | SDA | SCL |
BM8563 |
