Specificaties:
Power Supply: DC 12V 24V/ AC 110V-220V (Optional)
Temperature Control Range: -55℃-120℃
Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
Color of Displaying: red/blue
Measurement accuracy: ±0.1°C
Control accuracy: 0.1°C
Sensor: NTC10K Waterproof sensor
Output: Relay Contact Capacity 20A 12V / 10A 220V
Environmental requirements: -10-60°C, humidity 20%-85%RH

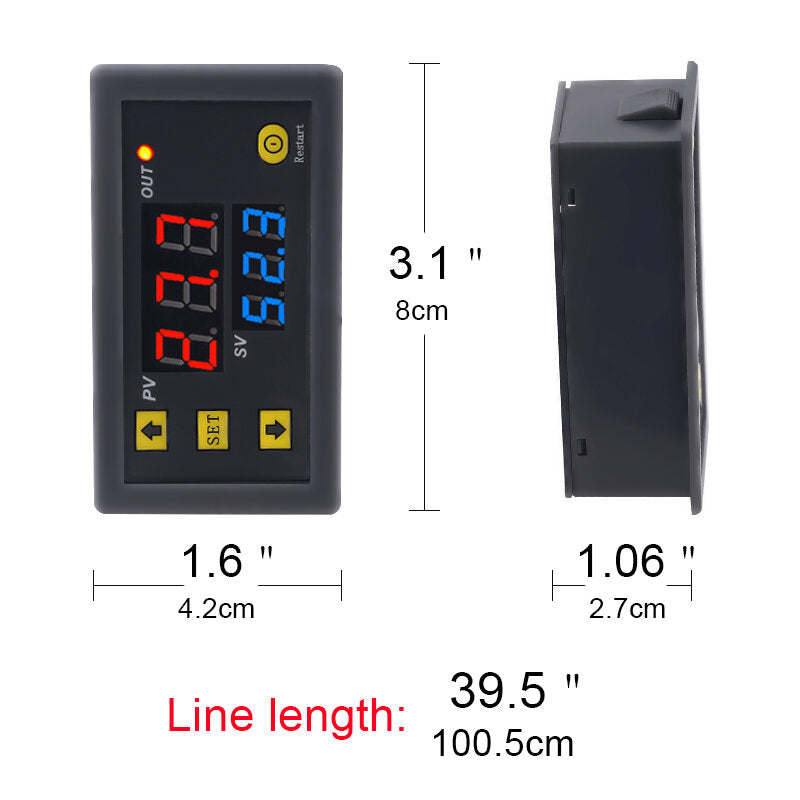

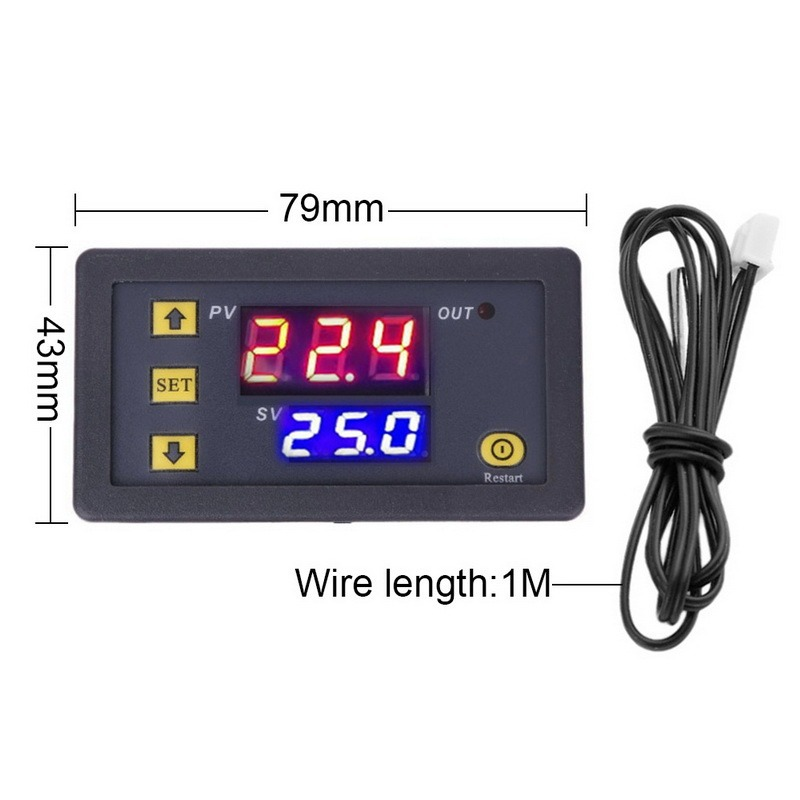

Dimension: 79mm *43mm*26mm
Cutting Size: 73mm*39mm
Sensor wire: 1 meter
Functiebeschrijving:
P0: refrigeration or heating mode
P1: instelling retourverschil
P2: maximum temperature setting upper limit
P3: minimum temperature setting lower limit
P4: temperatuurcorrectie
P5: delay start time (unit: minute)
Pakket bestaat uit:

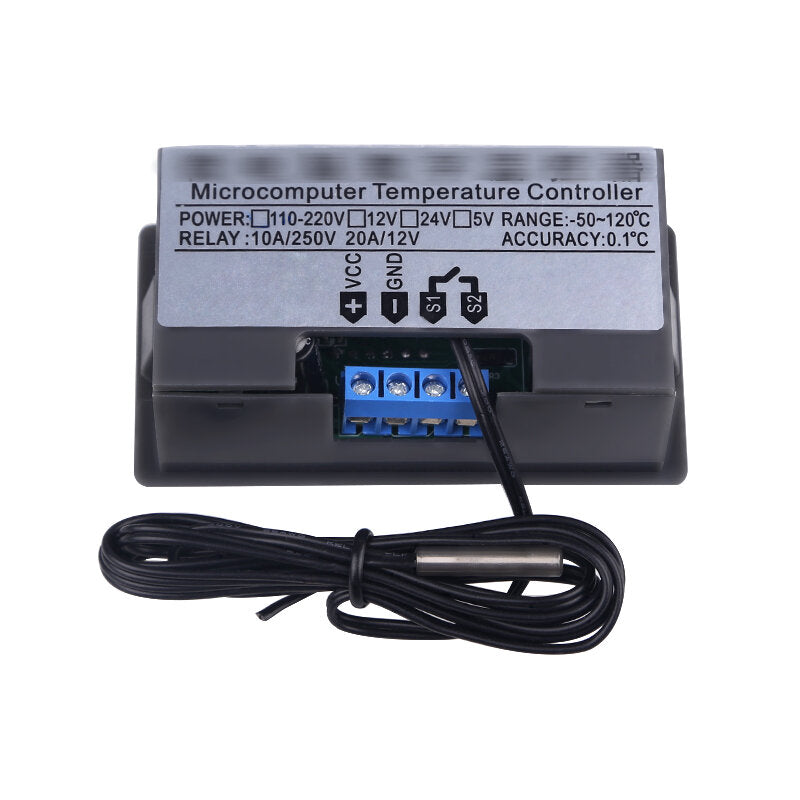

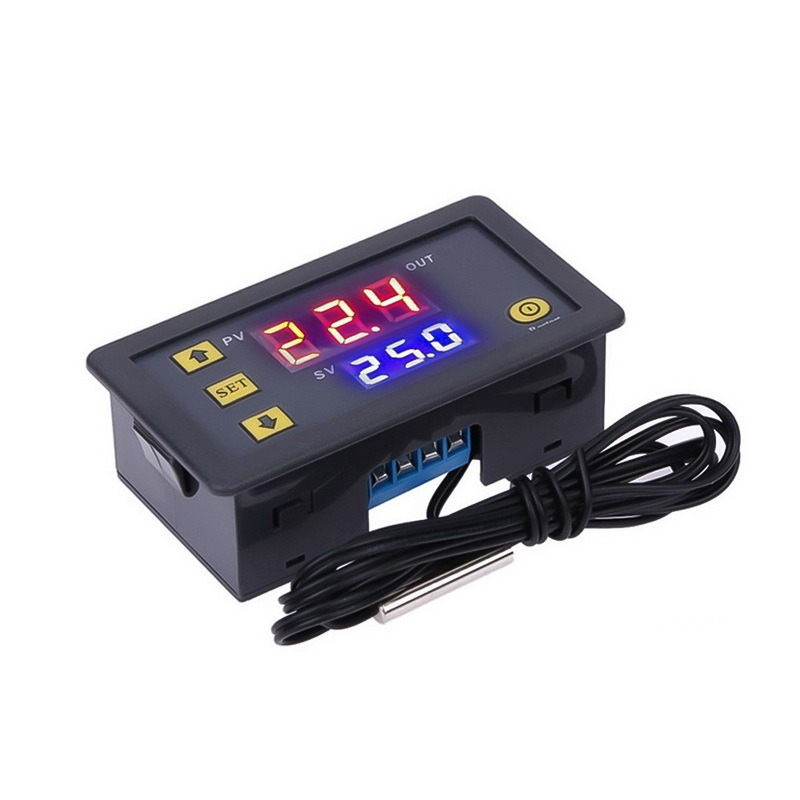

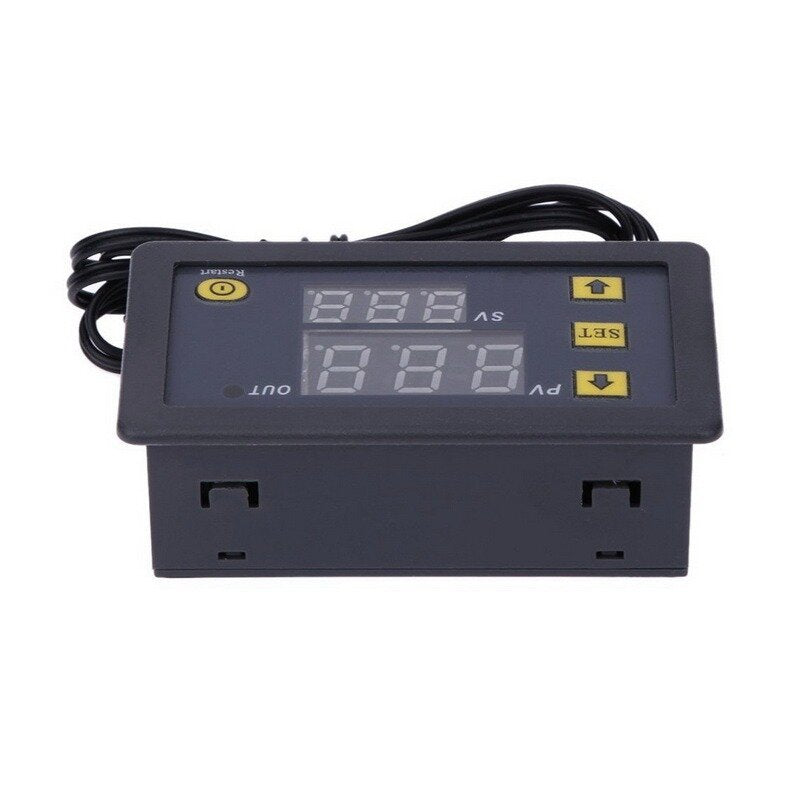

1 x Temperature Controller with NTC10K Waterproof sensor
